In addition to dry, powder or water wash paint booths, LEM Impianti, in Carate Brianza in the Province of Monza Brianza, also designs and manufactures drying and curing ovens and static ovens as components of painting systems.
Request a quote

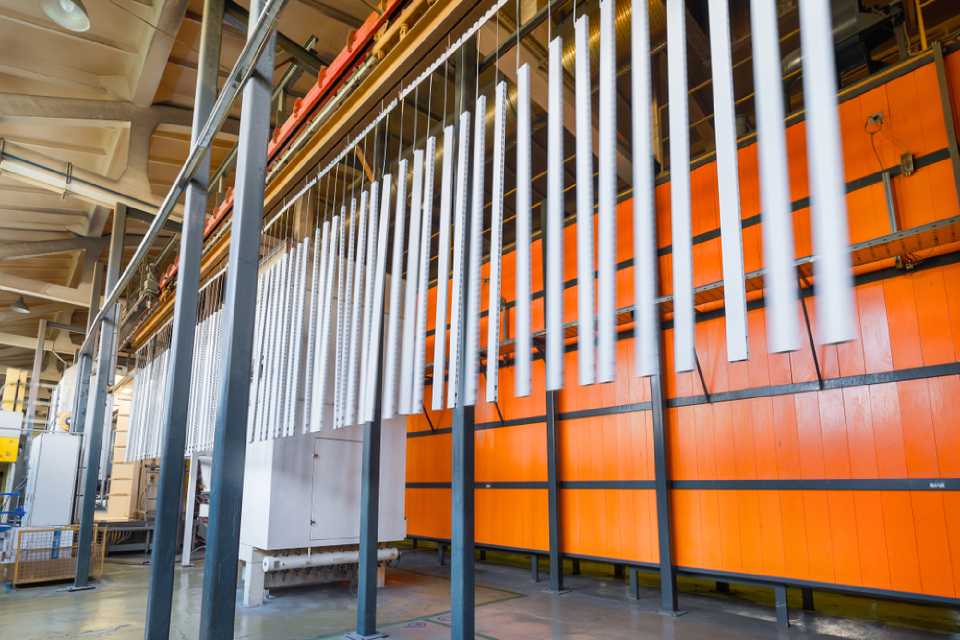

Drying and curing ovens

The drying and curing ovens we produce at LEM Impianti in Carate Brianza are used for monoblock or panel-type painting, in line or with a bell applicator.

Our ovens consist of a sturdy internal steel structure with walls made of folded galvanized sheet metal, which is designed to ensure uniformly distributed ventilation throughout the interior of the oven.

The rock-wool insulation panels have an overall thickness of up to 200 mm depending on the operating temperatures.
The external walls are made of galvanized sheet-metal panels or insulated panels.
The maximum operating temperature is 300°C and methane gas or diesel may be used as fuel.

The rock-wool insulation panels have an overall thickness of up to 200 mm. The hot-air distribution assembly, which consists of a series of deflectors located near the bottom and resting on end, is useful for uniform heat distribution.

The combustion chamber is composed of:
  • an opening in the upper part of the generator for air intake from the oven
  • an opening in the lower part of the generator to expel air into the oven
  • recirculated air renewal unit complete with regulation damper and chimney connection flange
  • centrifugal fans to circulate air inside the oven, specially made for high temperatures with a cooling fan, connected to a 3-phase 4-pole asynchronous motor
  • support structure made to allow the fan to be extracted
  • suitably sized heat exchanger consisting of a combustion chamber in AISI 430 30/10 stainless steel, closed on one side with a removable plate containing holes for the burner and spy-hole, as well as a tube bundle
  • electronic temperature control with 0–250°C digital indicator;
  • probe for detecting the interior oven temperature
The entire system is designed for easy maintenance and internal cleaning and may also be extracted. The equipment is contained in a special case to be mounted on the electrical control panel.

Static ovens

We also produce static, monobloc, gas, diesel and electric ovens consisting of a sturdy structure with walls in folded galvanized sheet metal. These appliances are designed to ensure uniformly distributed ventilation throughout the interior of the oven. The rock-wool insulation panels have an overall thickness of up to 200 mm depending on the operating temperatures, while the external walls are made of galvanized sheet-metal panels.

The combustion chamber is composed of:
  • an opening in the upper part of the generator for air intake from the oven
  • an opening in the lower part of the generator to expel air into the oven
  • recirculated air renewal unit, complete with regulation damper and chimney connection flange
  • centrifugal fans to circulate air inside the oven, specially made for high temperatures with a cooling fan, connected to a 3-phase 4-pole asynchronous motor
  • support structure made to allow the fan to be extracted

The suitably sized heat exchanger consists of a combustion chamber in AISI 430 30/10 stainless steel, closed on one side with a removable plate containing holes for fixing the burner and spy-hole, as well as a tube bundle.
Complete treatment facilities

To request the design of your water wash paint booth, fill out our contact form.
